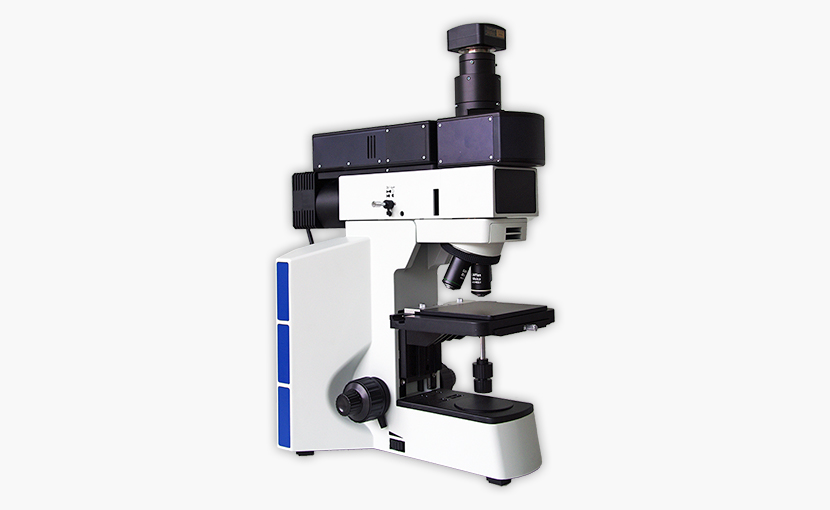

Compact microscope Confotec® Uno

The new Confotec® Uno confocal Raman microscope from SOL instruments is a compact device with one built-in laser, either of 532 nm or 785 nm wavelength (optional), with a telescope and a single-channel imaging spectrometer on 120-mm vertical optical platform and a 4096-pixel linear CCD detector that allows to obtain high resolution spectra and high-efficiency light collection.

contact us

Benefits of the Confotec® Uno microscope

  • High sensitivity – third-order silicon peak detection;
  • High spectral resolution;
  • Long-term stability in operation without additional adjustment of the device;
  • Due to a one-piece monobloc design, Confotec® Uno does not require an optical table and can also be easily transported without the need for further adjustment;
  • Guaranteed reliability: no moving parts in the device, spectrum automatic calibration provides long-term stability of the device and reproducibility of measurement results;
  • Easy to use: just put a sample and select an area of interest; a smooth adjustment of a laser power is provided for a user convenience.

Features of the microscope

  • A new type of low-noise detector, which is characterized by a high signal-to-noise ratio allows measurements without low-temperature cooling;
  • Optionally, the microscope can be equipped with an automated table for obtaining 2D Raman images of various microscopic objects with a spatial XY resolution of about 1 µm, as well as with a protective cover to ensure Class-1 laser safety.
Single laser microscope Confotec® Uno

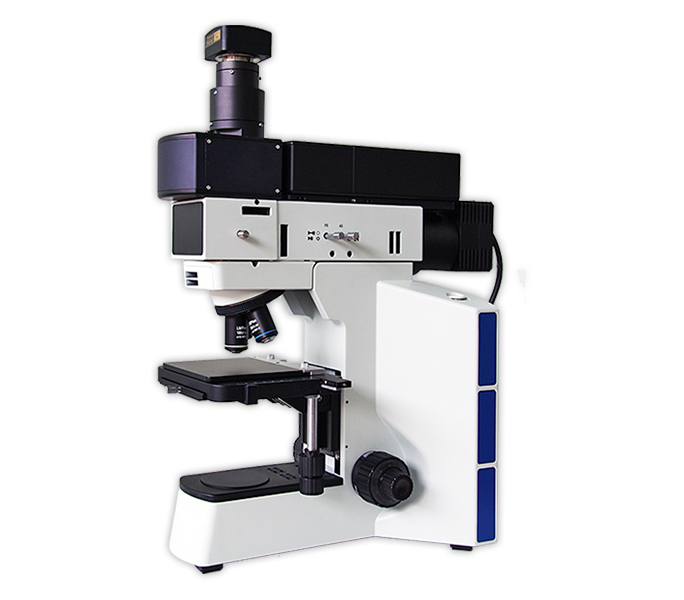

Confocal microscope Confotec® Uno

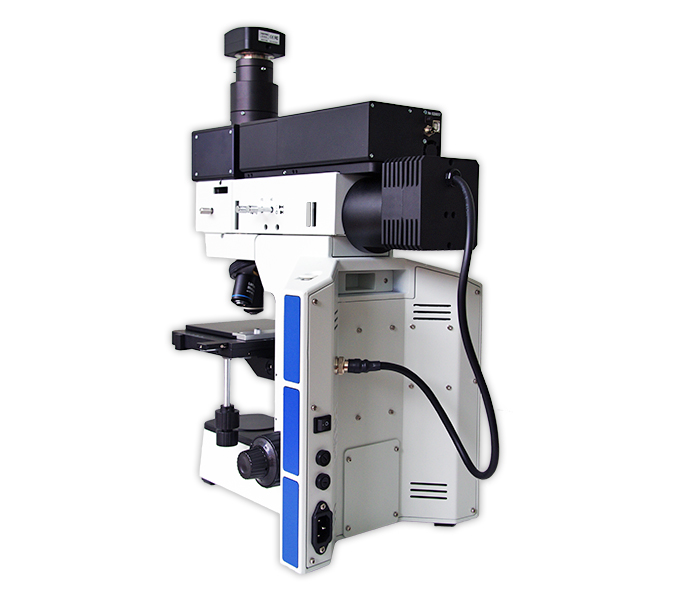

Raman microscope Confotec® Uno
Comact microscope Confotec® Uno

General system specifications

Microscope: Upright microscope with a turret for 6 micro-objectives, with a diode illuminator for working in bright/dark field mode in reflected light and with a color video surveillance camera. A set of objectives is selected individually depending on the type of samples to be measured.
Spectrometer: High performance fixed grating spectrometer. Based on the type of measured samples, two options of diffraction grating can be offered to ensure the optimal recorded range and spectral resolution.
Detector: Highly sensitive linear detector. Spectral sensitivity range: 200-1100 nm. Number of pixels: 4096, pixel size: 7×200 microns.
Laser: DPSS laser with a wavelength of 532±0.1 nm, 50 mW.
Optional: 785±0.1 nm diode laser, 130 mW, with optical isolator.
Sensitivity: The 3rd order silicon peak detection.
Spatial resolution: Lateral (XY) < 1 µm, axial (Z) < 2 µm.
Video camera: Color (at least 5 megapixels) with ability to save the images on a computer.
Sample scanning: Optional: precision automated XY stage with range of movements 100×75 mm & min step 100 nm.
  • Microscope: Upright microscope with a turret for 6 micro-objectives, with a diode illuminator for working in bright/dark field mode in reflected light and with a color video surveillance camera. A set of objectives is selected individually depending on the type of samples to be measured.
  • Spectrometer: High performance fixed grating spectrometer. Based on the type of measured samples, two options of diffraction grating can be offered to ensure the optimal recorded range and spectral resolution.
  • Detector: Highly sensitive linear detector. Spectral sensitivity range: 200-1100 nm. Number of pixels: 4096, pixel size: 7×200 microns.
  • Laser: DPSS laser with a wavelength of 532±0.1 nm, 50 mW. Optional: 785±0.1 nm diode laser, 130 mW, with optical isolator.
  • Sensitivity: The 3rd order silicon peak detection.
  • Spatial resolution: Lateral (XY) is less than 1 µm, axial (Z) is less than 2 µm.

  • Video camera: Color (at least 5 megapixels) with ability to save the images on a computer.

  • Sample scanning: Optional: precision automated XY stage with range of movements 100×75 mm and min step 100 nm.

Spectral characteristics

Laser wavelength Laser power Detected range Spectral resolution
532 nm 50 mW 70 сm⁻¹ – 3155 сm⁻¹
70 сm⁻¹ – 4740 сm⁻¹		 4 сm⁻¹ – 4,7 сm⁻¹
6,8 cm⁻¹ – 7,5 сm⁻¹
785 nm 130 mW 50 сm⁻¹ – 2140 сm⁻¹
50 сm⁻¹ – 3500 сm⁻¹		 2,8 cm⁻¹ – 3,2 сm⁻¹
6,7 сm⁻¹ – 7 сm⁻¹
  • Laser wavelength 532 nm: laser power 50 mW; detected range 70-3155 сm⁻¹; spectral resolution 4-4,7 сm⁻¹
  • Laser wavelength 532 nm: laser power 50 mW; detected range 70-4740 сm⁻¹; spectral resolution 6,8-7,5 сm⁻¹
  • Laser wavelength 785 nm: laser power 130 mW; detected range 50-2140 сm⁻¹; spectral resolution 2,8-3,2 сm⁻¹
  • Laser wavelength 785 nm: laser power 130 mW; detected range 50-3500 сm⁻¹; spectral resolution 6,7-7 сm⁻¹

Application areas of Confotec® Uno

  • Analysis of tablets and solutions;
  • Identification and analysis of additives and fillers;
  • Control of a condition of drugs: purity and quality;
  • Raw materials check (100% identification).

  • Identification of drugs by non-destructive method;
  • Identification and analysis of solvents;
  • Expertise of fibers, fabrics, pigments, spots, etc.;
  • Proof of authenticity of works of art;
  • Analysis of documents, medicaments, money.

  • Study of preservation and degradation of art objects;
  • Study of art objects aging;
  • Identification of materials used for objects of art.

  • Detection of pollutants;
  • Analysis of precipitation in water.

  • Identification and verification (research) of gemstones by non-destructive method;
  • Control of fakes (zirconium products).

  • Identification of geological materials;
  • Detection of inclusions in minerals;
  • Analysis of chemical composition.

  • Analysis of various carbon-derived structures;
  • New materials used in nanotechnologies.

The Confotec® Uno Raman microscope has a wide range of applications. Please contact us for detailed information related to your specific tasks and investigation areas.
