Additional equipment for spectrophotometers МС 122 and MC 124
When working with spectrophotometers of MC 122 and MC 124 series, a wide range of auxiliary equipment can be used. Contact us to find out whether any accessories will be needed to solve your tasks.

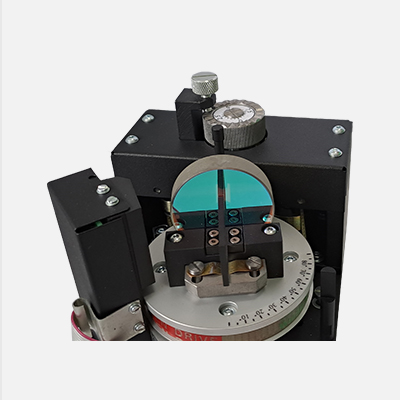

Attachment of reflectance M8-82IR
The photoelectric attachment M8-82 for absolute reflectance measurements under variable angles (from 8 to 82 degrees), angle set step – 0,5 degrees. Working spectral range: 800-3200 nm. Thermostatically-cooled PbS photodetector. For angles of incidence greater than 12.5 degrees, measurements are performed with the P3 polarizer.
Attachment M8-82
Attachment for measurement of absolute directed specular reflectance for incidence angle from 8 up to 82 degrees. Angle installation step is 0.5 degrees.
Polarizer P1
Glan-Taylor prism-based radiation polarizers for conversion of free-polarized radiation into plane-polarized radiation in the wavelengths range from 220 up to 1100 nm.
Attachment M10-1
Attachment for measurement of directed specular reflectance for incidence angle of 10 degrees with relative method of measurement (with flat mirror M1).
Attachment H60
Attachment for measurement of the directed optical transmittance of samples with thickness of up to 1.5 mm at incidence angle from 0 up to 60°. Angle installation step is 0.5 degrees.
Holder C35
Holder for solid samples and thin films, with sample clamping C2.
Holder T10
Thermostated holder for thermal stabilization of the investigated samples in the cell with external dimensions 12,5 х 12,5 х 45 mm (with optical path of 10 mm) within the range of temperatures from 13 up to 52 °С with 0,1 °С step (the thermostating temperature is regulated with the spectrophotometer according to the measurement procedure).
Pump PP 122
Peristaltic pump with flow-through cells КН390 (or КН450).
Light filters KC11
A set of light filters for verification of spectrophotometer MC 122.
Diffuse transmission and reflection device
Diffuse transmission and reflection device (with an integrating sphere) for measuring the spectral coefficients of diffuse transmission and diffuse reflection of samples in the spectral region from 220 to 1100 nm, calculating color coordinates and chromaticity coordinates in various CIE colorimetric systems for various types of sources, as well as measuring turbidity. Applicable for MC 122, MC 122A.
Software PSI-MC 2
Specialized software PSI-MC 2 for spectrophotometers of the MC series manufactured by SOL instruments. PSI-MC 2 is installed and used on an external personal computer.
