Solid-state pulsed Nd:YAG laser LF113

Pulsed Nd:YAG lasers LF113 and LF114

Solid-state single pulse Q-switched lasers LF113 and LF114 with lamp-pumping are reliable and high performance instruments distinguished for their stability of output parameters and the ability to control all laser systems of the device.

The LF113 and LF114 models are excellent pump sources for tunable lasers from SOL instruments as well as produced by other manufacturers.

  • Reliability and ease of use

  • Long term stability of output parameters

  • Monitoring all laser systems

  • Protection against moisture and dust on optical components

  • Resistance to mechanical and thermal influences

  • High conversion efficiency of harmonics

  • High stability of output energy at various frequencies

  • Reliable autonomous cooling system liquid-air

Solid-state lasers LF113 and LF114 are an excellent option for use as a pump source for tunable lasers from SOL instruments, as well as from other manufacturers.

Other pulsed lasers of LF series from SOL instruments:

Help & Support

If you have any questions regarding purchase of possibilities of the solid-state pulsed Nd:YAG lasers of the LF series with lamp-pumping, do not hesitate and contact us!

contact us

Description of solid-state pulsed Nd:YAG lasers LF113 and LF114

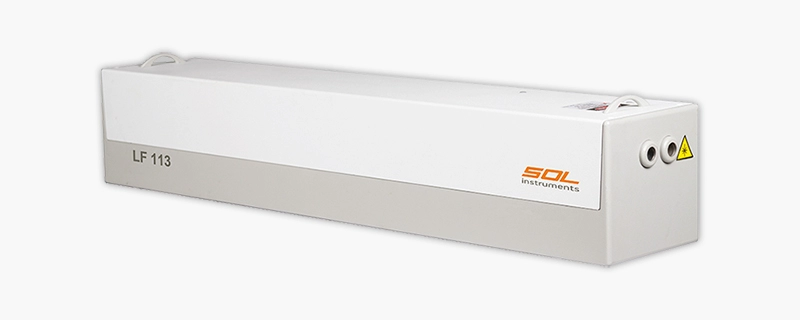

Solid-state Q-switched Nd:YAG laser LF113 / LF114

  • Reliable and high performance laser with high stability of output parameters, super-stable solid rod construction of the laser head, reliable autonomous cooling system liquid-air, and thermostabilization and hermetic sealing of all crystals.
  • The laser body of the device is sealed and the beam paths are shielded to protect optical components against dust and moisture.
  • The solid rod construction of the solid-state pulsed Nd:YAG laser ensures long-term stability of output parameters irrespective of outer mechanical stresses or environmental influences.
  • All nonlinear crystals, used in the laser head, are placed in thermostats to ensure high conversion efficiency of harmonics and also high stability of output energy at various frequencies.
  • The cooling system of the laser LF113/LF114 is constructed by the principle water-air.
  • Solid-state pulsed Nd:YAG lasers manufactured by SOL instruments, in particular models LF113 and LF114, are excellent pump source for tunable lasers of own production as well as produced by other manufacturers.
Power and cooling system for LF series pulsed lasers
Power and cooling system for LF series solid-state pulsed Nd:YAG lasers

Cooling unit

Laser cooling system
  • built-in heater for short warm-up time;
  • absence of external loop (water-air heat exchanger);
  • high efficiency of heat exchange, up to 1200 W;
  • temperature stability 0.05 °C;
  • built-in deionization cartridge.

Power supply

Laser power supply
  • single phase;
  • automatic block systems;
  • power corrector;
  • accessory connection capability;
  • continuous power supply of thermostats.

Specification of lamp-pumped pulsed Nd:YAG lasers LF113 and LF114

Model LF113 LF114
Energy per pulse (1064 nm): 200 mJ 320 mJ
Energy per pulse (532 nm – optional): 110 mJ 180 mJ
Energy per pulse (355 nm – optional): 25 mJ 60 mJ
Energy per pulse (266 nm – optional): 20 mJ 40 mJ
Pulse width (1064 nm): 10 – 12 ns 10 – 14 ns
Pulse repetition rate: 20 Hz 1 – 10 (20) Hz
Beam divergence (at level 0.86): 1.0 mrad < 0.8 mrad
Beam diameter: 5 mm < 6.0 mm
Jitter: ± 1.0 ns 1.0 ns
Pulse to pulse energy stability (1064 nm): ± 2.4% ± 2.5%
Power requirements: 220 V +/-10% (110 V), 50-60 Hz; 900 W (max) 220 V +/-10% (110 V), 50-60 Hz; 1000 W (max)
Dimensions (L х W х H) of laser head: 720 х 136 х 130 mm 720 х 136 х 130 mm
Dimensions (L х W х H) of power supply: 475 х 483 х 261 mm 475 х 483 х 261 mm
Dimensions (L х W х H) of cooling unit: 490 х 483 х 177 mm 490 х 483 х 177 mm

Model LF113

  • Energy per pulse (1064 nm): 200 mJ
  • Energy per pulse (532 nm — optional): 110 mJ
  • Energy per pulse (355 nm — optional): 25 mJ
  • Energy per pulse (266 nm — optional): 20 mJ
  • Pulse width (1064 nm): 10-12 ns
  • Pulse repetition rate: 20 Hz
  • Beam divergence (at level 0.86): 1.0 mrad
  • Beam diameter: 5 mm
  • Jitter: ±1.0 ns
  • Pulse to pulse energy stability (1064 nm): ± 2.4%
  • Power requirements: 220 V +/-10% (110 V), 50-60 Hz; 900 W (max)
  • Dimensions (L х W х H) of laser head: 720 х 136 х 130 mm
  • Dimensions (L х W х H) of power supply: 475 х 483 х 261 mm
  • Dimensions (L х W х H) of cooling unit: 490 х 483 х 177 mm

Model LF114

  • Energy per pulse (1064 nm): 320 mJ
  • Energy per pulse (532 nm — optional): 180 mJ
  • Energy per pulse (355 nm — optional): 60 mJ
  • Energy per pulse (266 nm — optional): 40 mJ
  • Pulse width (1064 nm): 10-14 ns
  • Pulse repetition rate: 1-10(20) Hz
  • Beam divergence (at level 0.86): less than 0.8 mrad
  • Beam diameter: less than 6.0 mm
  • Jitter: 1.0 ns
  • Pulse to pulse energy stability (1064 nm): ± 2.5%
  • Power requirements: 220 V +/-10% (110 V), 50-60 Hz; 1000 W (max)
  • Dimensions (L х W х H) of laser head: 720 х 136 х 130 mm
  • Dimensions (L х W х H) of power supply: 475 х 483 х 261 mm
  • Dimensions (L х W х H) of cooling unit: 490 х 483 х 177 mm
Dimensions of pulsed Nd:YAG lasers LF113 and LF114
Dimensional drawing of solid-state pulsed Nd:YAG lasers LF113 and LF114
